"Printing machine - INNOFLEX"
The INNOFLEX is a "Roll-To-Roll Printing Machine"for coated and uncoated tubular PP tape fabric.
It combines highest levels of productivity - production speed of up to 200 meters per minute - and quality with easy handlingand low maintenance.
- PP Wovensack Flexo Printing Machine
- HD Wovensack Flexo Printing Machine
- LDPE Wovensack Flexo Printing Machine
6 COLOUR STACK-TYPE PRINTING ON BOTH SIDES
PRODUCTION SPEED OF "200 METERS " PER MINUTE
MAINTENANCE - FREE DIRECT DRIVE TECHNOLOGY
FULLY AUTOMATIC ROLL CHANGE
Do You Need Quick Response ?
FILL IN YOUR DETAILS

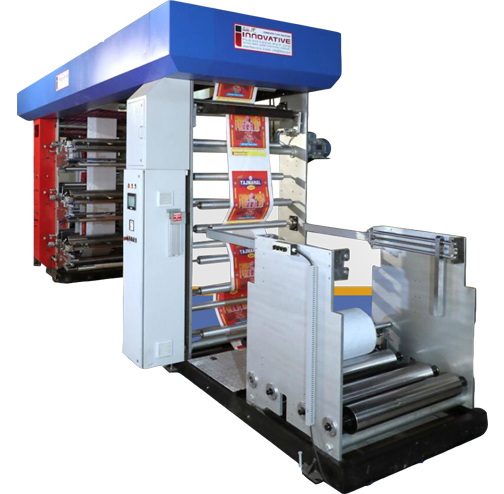

Wovensack Flexo Printing Machine
Features
- 3 Drive System Control Panel
- Electronic Edge Guide System
- Print unit Control panel
- Shaftless Rewinder/Unwinder Unit
- Operator interface touch screen at rewinder side.
- Pneumatic Infeed/Outfeed system
Attend First Demo Buy Later! If You Feel It was Value for Time & Money.
ENQUIRY ACTUAL COST OF MACHINE ?
CALL US NOW
WHAT IF I TOLD YOU...
Two in one Technology Wovensack Fabric Flexographic Printing machine With Bopp Attachments
Printing machine – InnoFlex Mf
The InnoFlex Mf is a roll-to-roll printing machine for coated and uncoated tubular PP tape fabric.
Advantages
- Standard automatic roll change
- Gearless drive system
- Roll diameter of 1.5 meters
- Process printing
- Operator-friendly
- Lifting support for change of printing cylinders

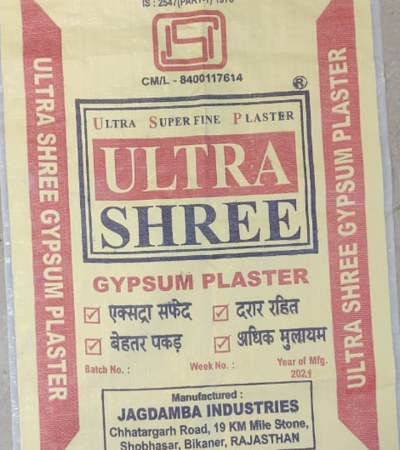

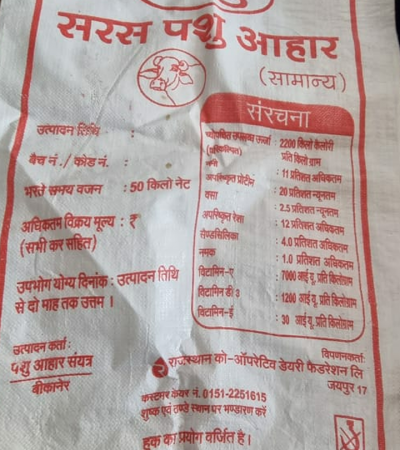

Printing Sample
FEATURES
- Choice of printing both sides in 5+1, 4+2, 3+3 colour combinations.
- A turret un-winder with facility to run the machine without stopping, while loading fabric rolls and unloading empty core
- A surface winder, with provision to run the machine without stopping, while changing the wound fabric roll and placing fresh core.
- An Edge Guiding System, with Ultrasonic Edge Sensor and Electric Actuator.
- Chamber Doctor Blade System, with Ink Circulation System, shall be offered for all the stations, in lieu of Ink Roller System (Option)
- Ceramic Anilox rollers with cells arranged at 200 to 300 lpi, with Special Mountings for Quick Changing (Option)
- Tension Control System.
- Page registration control adjustable manually to move the print drum radially.
- Print drum Axial adjustment required using a hand wheel to adjust the printing location axially marginally. (for about 30 to 40 mm)
- Hot air blower system, for drying the ink.
- Main motor with VFD and control panel to have all the controls in a HMI panel, with running hours meter and Energy meter.
- The working width shall be 850mm and the machine speed shall be 100m/min, with a maximum repeat length of 1200mm. The Stereo Roller Mountings shall be with quick release provisions, to facilitate easy changing of Stereo Cylinders.
- Two Air Shafts to mount 75mm cores for the Unwinding side and Two Air Shafts of the same core size, for the Winding Side shall also be provided (Option)
- 1 Ton Electric Rope Hoist, mainly for lifting print drums on both sides.
- Static Discharge Provision & Corona Treater to provide up to 42 Dynes Treatment (Option)
ENQUIRY ACTUAL COST OF MACHINE ?
CALL US NOW
Your Question -FAQ
Tap On Each Of These Tabs To Know…
- 4 color
- 6 color
- 8 color
- 500mm
- 600mm
- 800mm
- 1000mm
- 1200mm
from 70mtr to 150mtr/per mini
3 drive System – Unwind station, Main Drive, Rewind Station- Yes it is included in basic cost of machine.
Solvent based , Water based, UV, Electron Beam(EB), but always say solvent and water based.
Technical Data
- Printing variants 6C1:5 / 2:4 / 3:3 / 6:0
- Production capacity 200 mtr/min.
- Fabric width (max.)850 mm
- Printing width (max.)840 mm
- Repeat length 450 – 1450 mm
- Plate and tape thicknessmin. 2.84 + 0.5 mm
- max. 6.02 + 0.1 mm
- Side register +/- 6 mm
Why Innovative?
- 24 x 7 Online Support Available
- More than 4500 Satisfactory Customers worldwide, in More than 110 Countries
- 30000 Sq Feet Production Area, Complete in house Production In India.
- 21 Years of Experiencein Flexo Industry ( Since 1997 ).
- Expert sales team to help you select the machine as per your need.
- Original and high qualityservice parts

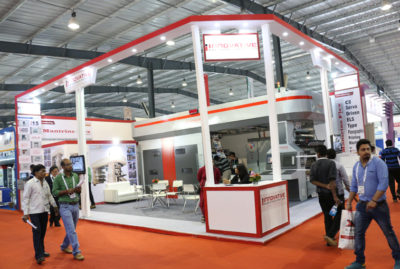

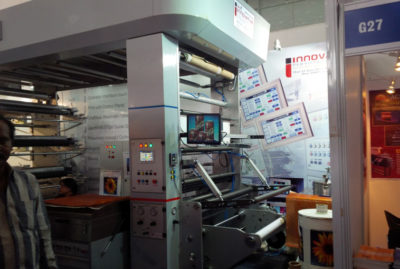

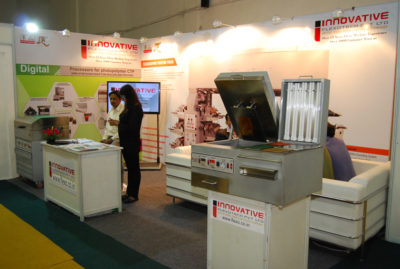

Exhibition Gallery
Book Now Live Product Demonstration
21 Year of Experience
ISO 9001: 2015
Quality Assurance Certified
Don’t Just Take My Word For It, Here’s What Others Have To Say…
Flexo Printing machine,
for printing on Unlaminated and Laminated PP Woven Fabrics
To Print on Special Products
- Rice Bags
- BOPP Bags
- Multicolor Special Printing

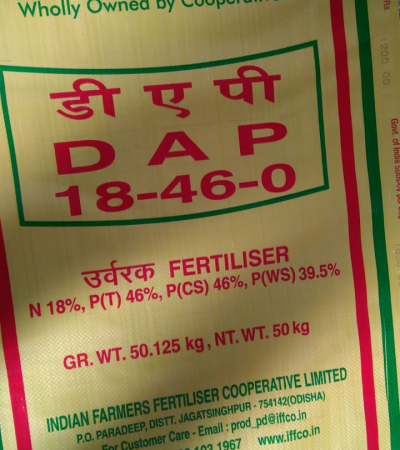

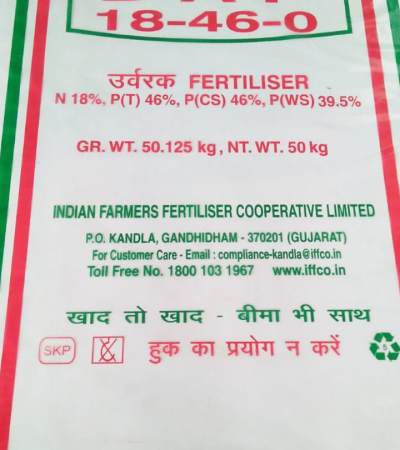

- Fertilizer Bags

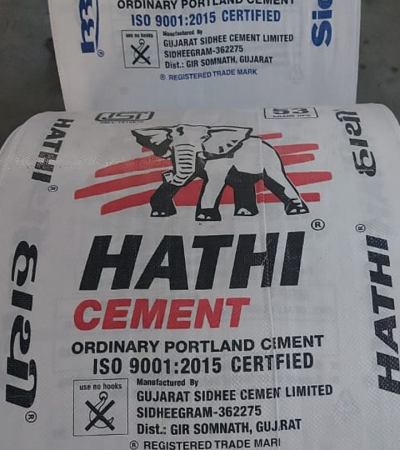

- Cement Bags
- Flour Bags
- Sugar Bags
- PP, LO, HM Photogenic Printing Bags
- Laminated or Unlaminated
